EKP Basic Module & Bezel

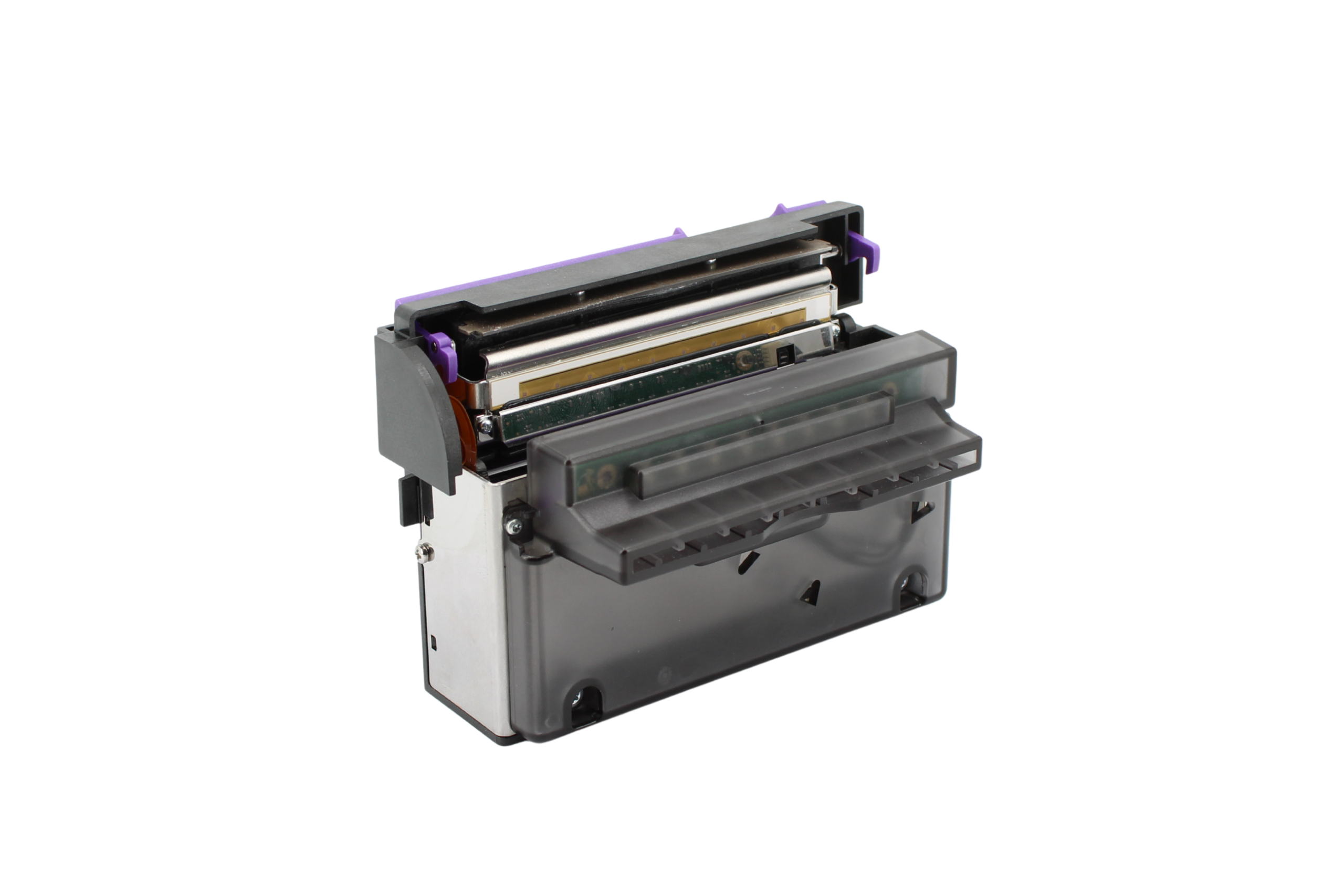

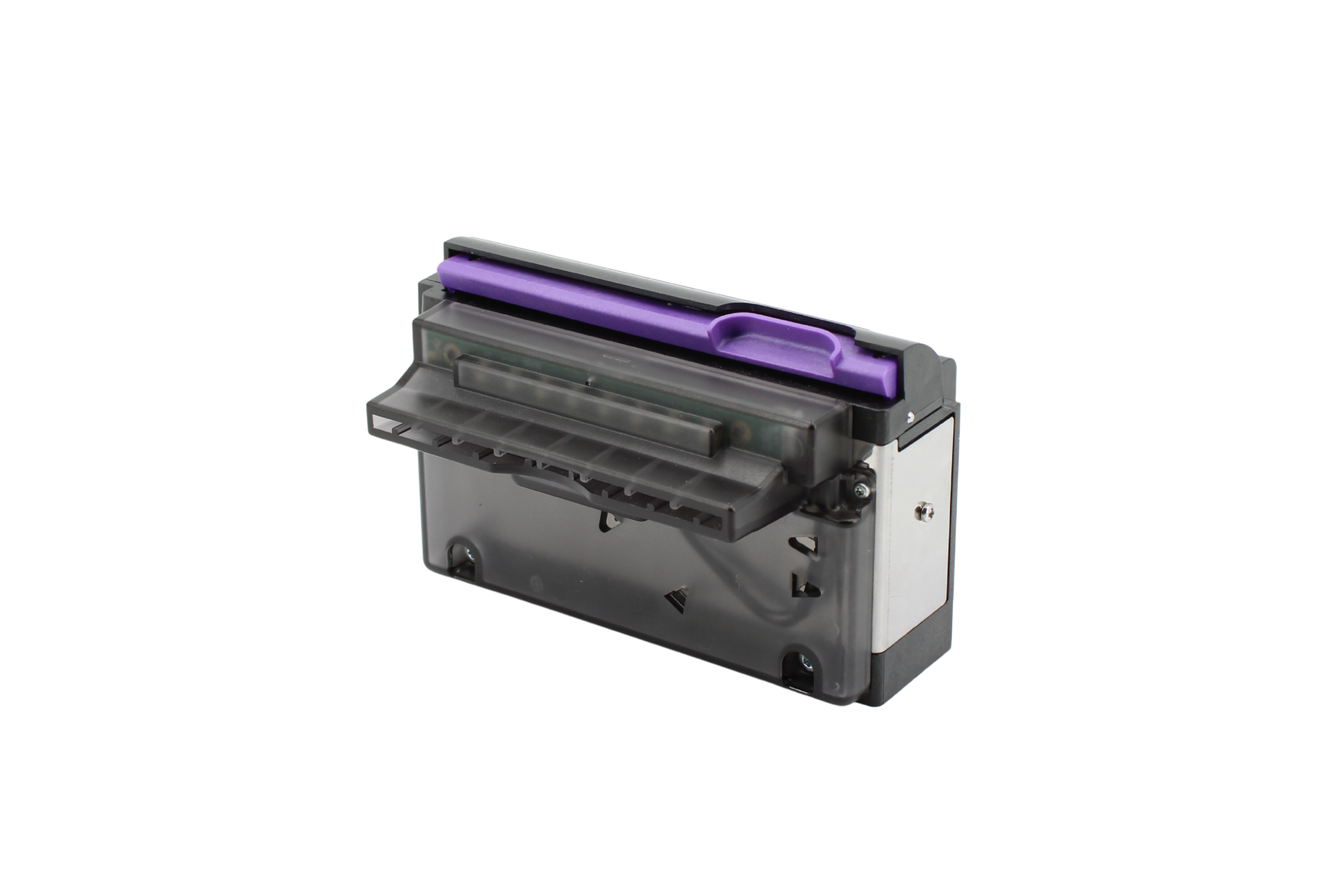

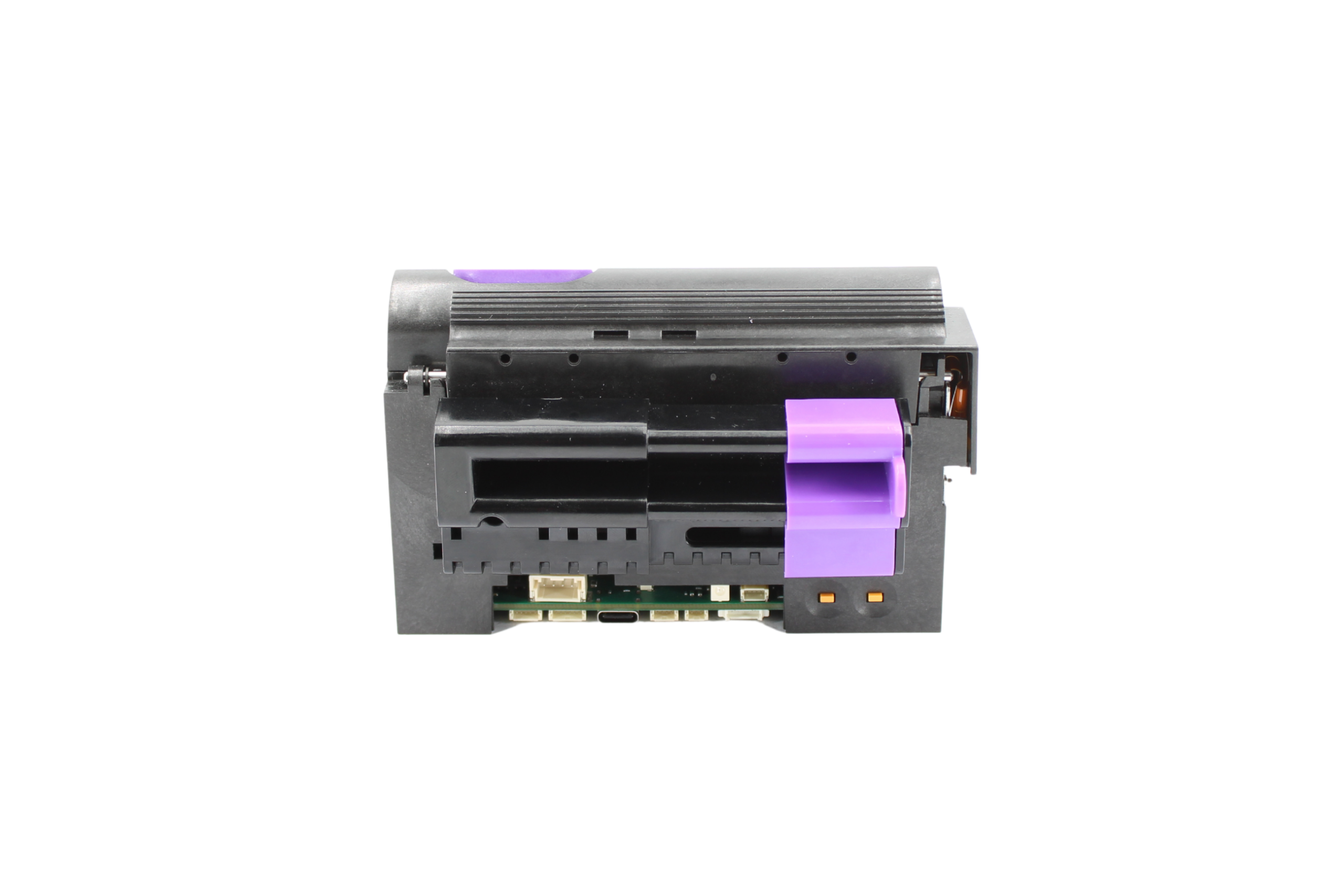

Compact OEM Kiosk Thermal Printer Basic Module with Bezel
Highlights and features
-
Compact design for easy integration into confined spaces
-
Fast printing speed up to 200 mm/s
-
Innovative adjustable paper guide for fast and precise media alignment
-
Easy-access rotating print head for quick cleaning and maintenance
-
Anti-jam exit bezel with integrated status LED
Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Max Printing speed (mm/s)
200
Print resolution (dpi)
300 (option)
203
Sensor
Cover Open
Near End
Paper
Paper End
Black Mark
Cutting Characteristics
Cutter Home Position
Optosensor
Cutter Type
Full & Partial
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
54 to 82.5 +0/-1
Printing width (mm)
From 48 to 72 mm with standard TPH
From 48 to 80 mm with wide TPH
Min. paper thickness (µm)
60
Max. paper thickness (µm)
120
Paper loading
Easy Loading
Media Roll Diamenter (mm)
150
Physical Characteristics
Dimensions (WxDxH mm)
125.4 x 82.2 x 76.4
Weight (g)
400
Operating Voltage
12V
24V
Voltage range (Logic/Head)
24V ±10%
12 Volts ± 10 %
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Printer Width
3"
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -25° to 70℃
Storage temperature
From -40° to + 80°C
Operating humidity
10% to 85% (no condensing)
Reliability
TPH
100 km / 100M pulses
Cutter
2 million cuts
Software
Command System
APS / POS + on-demand
Driver
Windows
SDK / Plug-in
Windows
Fonts / Graphics
Character Size (easy upgradable)
8 x 16
7 x 16
12 x 20
Barcode
EAN 8
Code 128
PDF 417
QR code
UPC-A
UPC-E
EAN13
CODE39
ITF
Graphics
Supporting all user-defined fonts
graphics & logos
Standards
Certifications
ISO 9001:2015
ISO14001
ISO13485:2016 certified - RoHS compliant
Options
Heavy-duty Label printing
Anti-jam detection
Exit bezel
Paper tensioner
Paper Holder
Loop Presenter / Retractor
Rewinder
Controller Board
300 dpi
Applications
ID Automation
Parking
Ticketing
Weighing Scales
Gaming & Lottery
Gas Pumps & Car Wash
Kiosk
Highlights and features
-
Compact design for easy integration into confined spaces
-
Fast printing speed up to 200 mm/s
-
Innovative adjustable paper guide for fast and precise media alignment
-
Easy-access rotating print head for quick cleaning and maintenance
-
Anti-jam exit bezel with integrated status LED
